Workforce Housing Duplex

Workforce Housing Duplex

$72,137.00

Workforce Housing Duplex

$72,137.00

Add to cart

Product Description

Workforce Housing Duplex – Workforce Housing Duplex Starting at $72,137

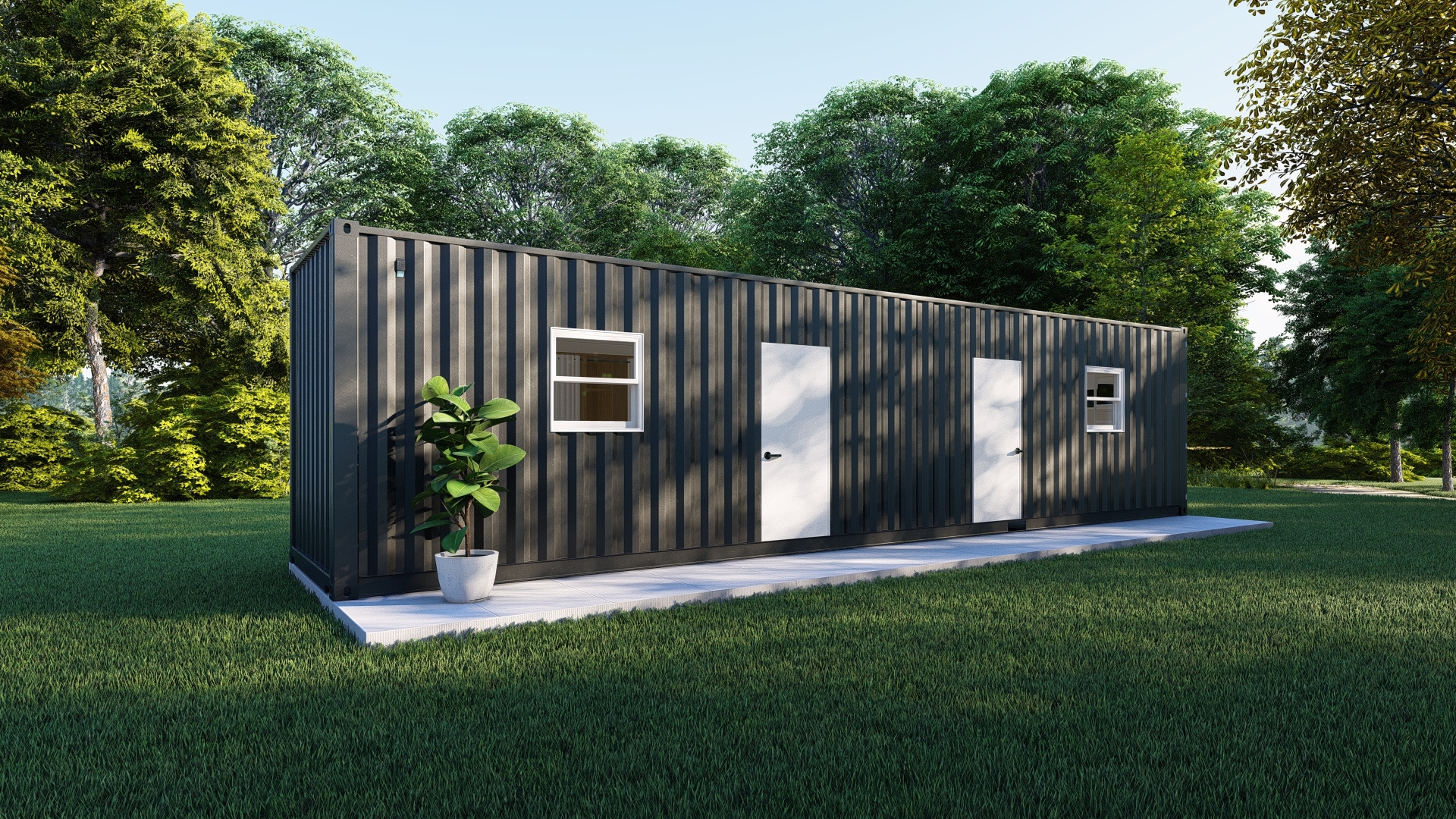

This affordable container home made from a 40 ft shipping container is an innovative and sustainable solution to the current housing crisis. These versatile and durable containers can be converted into comfortable living spaces with all the necessary amenities.

Affordable Container Home Features & Specs



Minimal Upkeep

Our affordable container homes are built to make servicing the units as simple as possible.



Easily Shipped and Moved

Shipping containers were designed to ship easily, so using them as a form factor for our affordable container home line ensures we can deliver with ease.



Cost-effective Student Housing

Affordable container homes can cut the time to inhabitancy compared to traditional affordable housing builds.

DIMENSIONS

  • Exterior –  40 ft (L) x 8 ft (W) x 9 ft 6 in (H) NEW HC Container

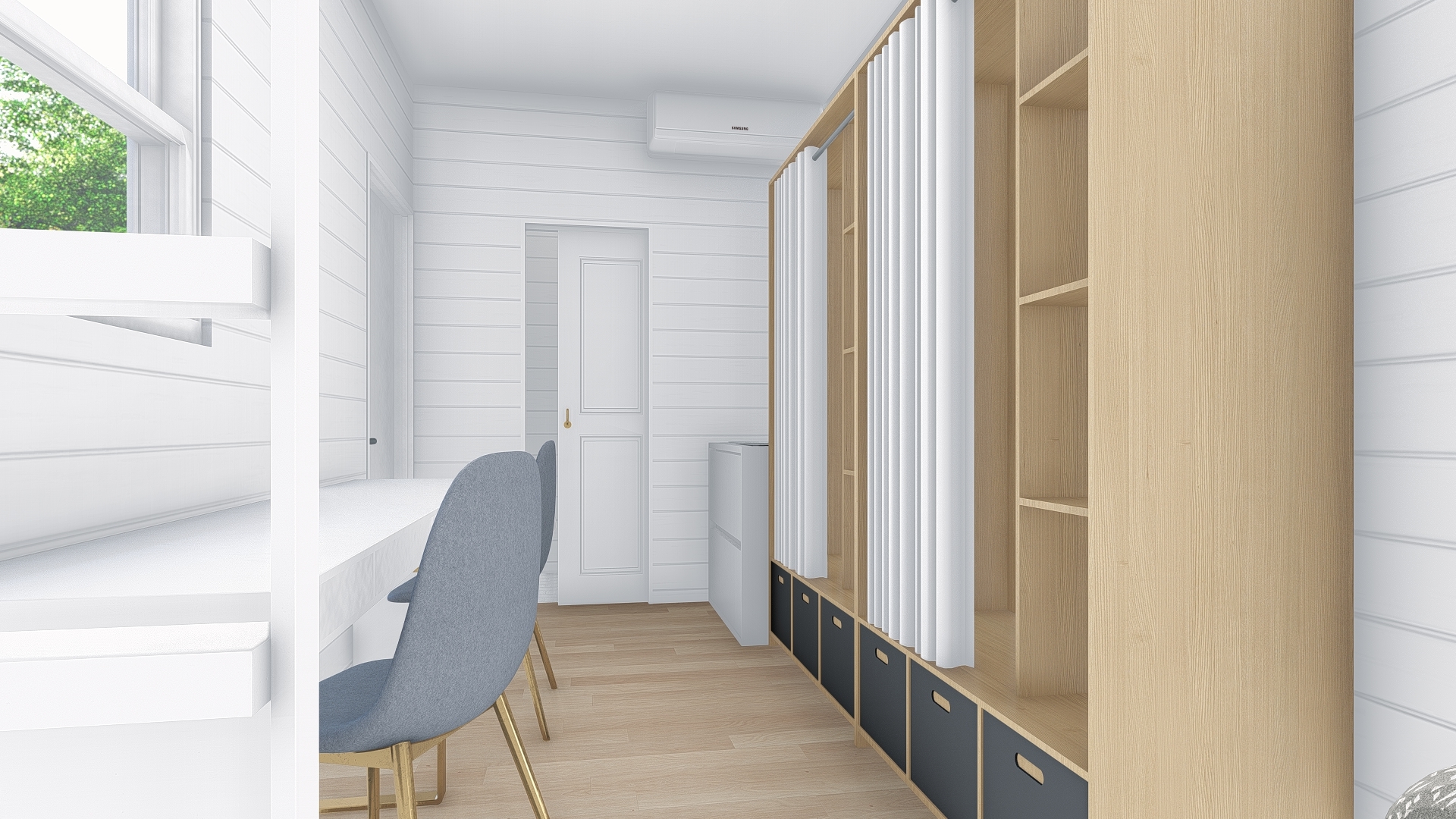

  • Bedroom 1 – 13′ ft 4 ¼ in (L) x 7 ft (W) x 8 ft 10 in (H)
  • Bedroom 2 – 13′ ft 4 ¼ in (L) x 7 ft (W) x 8 ft 10 in (H)
  • SHARED Bathroom – 11 ft (L) x 7 ft (W) x 8 ft 10 in (H)

FRAMING & WALLS

  • 2 in x 4 in wood studs on 16 in centers
  • LP Smart Siding Siding, Walls & Ceiling, Painted One Color

INSULATION

  • Zone 4 Insulation
  • Closed Cell Spray Foam

ELECTRICAL & LIGHTS

  • Qty 8 – 110v Duplex Outlets (4 Per Bedroom)
  • Qty 2 – 110v GFCI Duplex (1 Per Restroom)
  • Qty 2 – 110v GFCI Duplex (1 Per Kitchenette)
  • Qty 1 – 110v GFCI Exterior Outlet
  • Qty 4 – 13 in Brushed Nickel Low Profile Lights (2 Per Bedroom)
  • Qty 2 – Outdoor Automatic Light (1 Above Each Door)

FLOORING

  • Lifeproof Vinyl Flooring Options: Seasoned wood, Ashland, and Heirloom Pine
  • Vapor Barrier installed underneath floor

WINDOWS/DOORS

  • All Windows – Low-e Protection Glass, White Vinyl 3 in frame depth , Double Pane, Sealed with Argon Glass
  • Qty 2 – 3 ft x 3 ft Vertical Slider Window (1 Per Bedroom)
  • Qty 2 – 36 in x 80 Standard Personnel Door (1 Per Bedroom)
  • Qty 2 – 36 in x 80 in Pocket Doors (1 Per Bathroom)

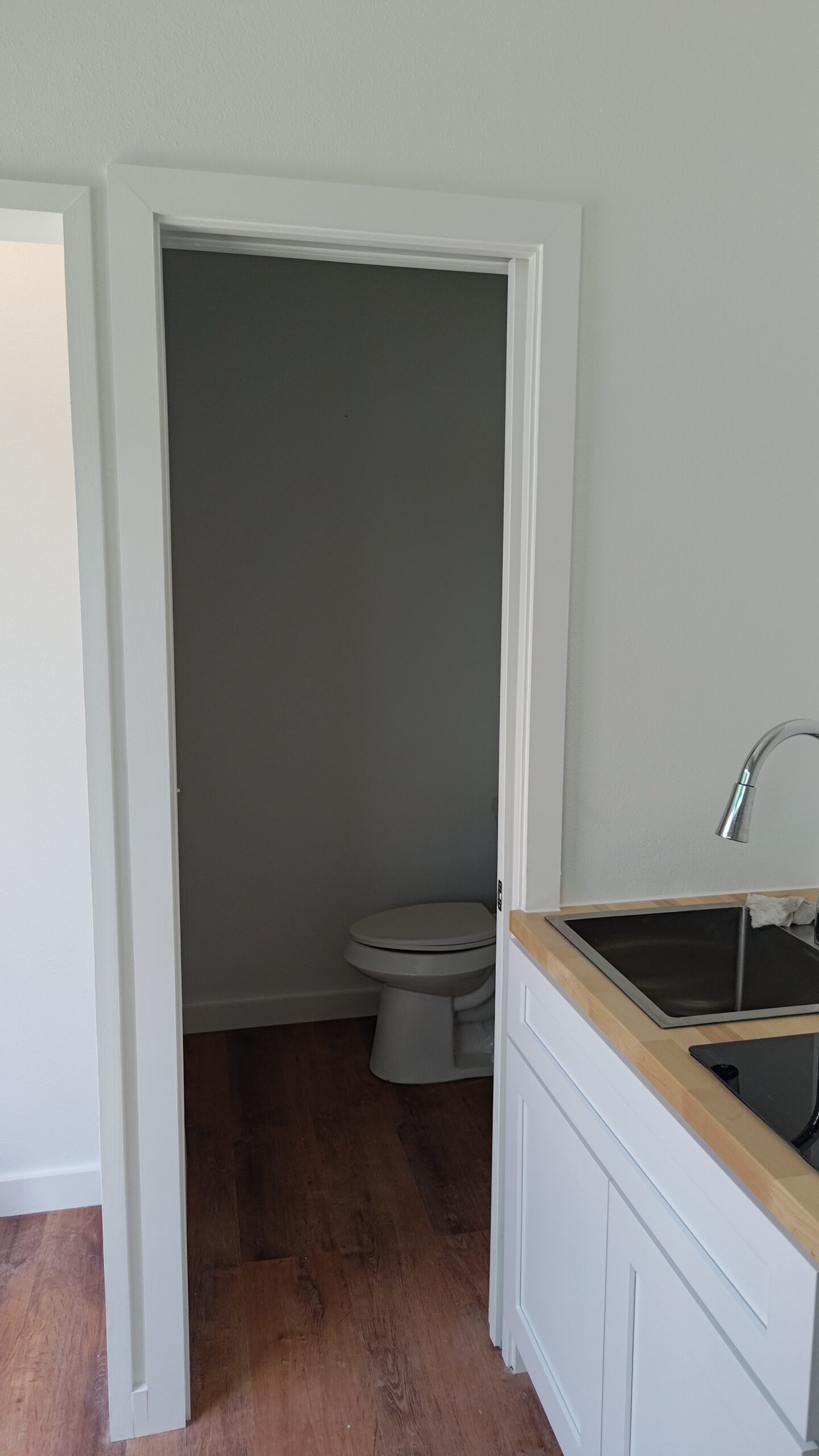

ADA KITCHENETTE

  • Qty 2 – 3 ft Shaker Kitchen Base Cabinets with Sealed Butcher Block Countertops (Hardware Not Included)
  • Qty 2 – Single Bay Sink with Faucet
  • Qty 2 – Drop-in Two Burner Electric Radiant Stove Top

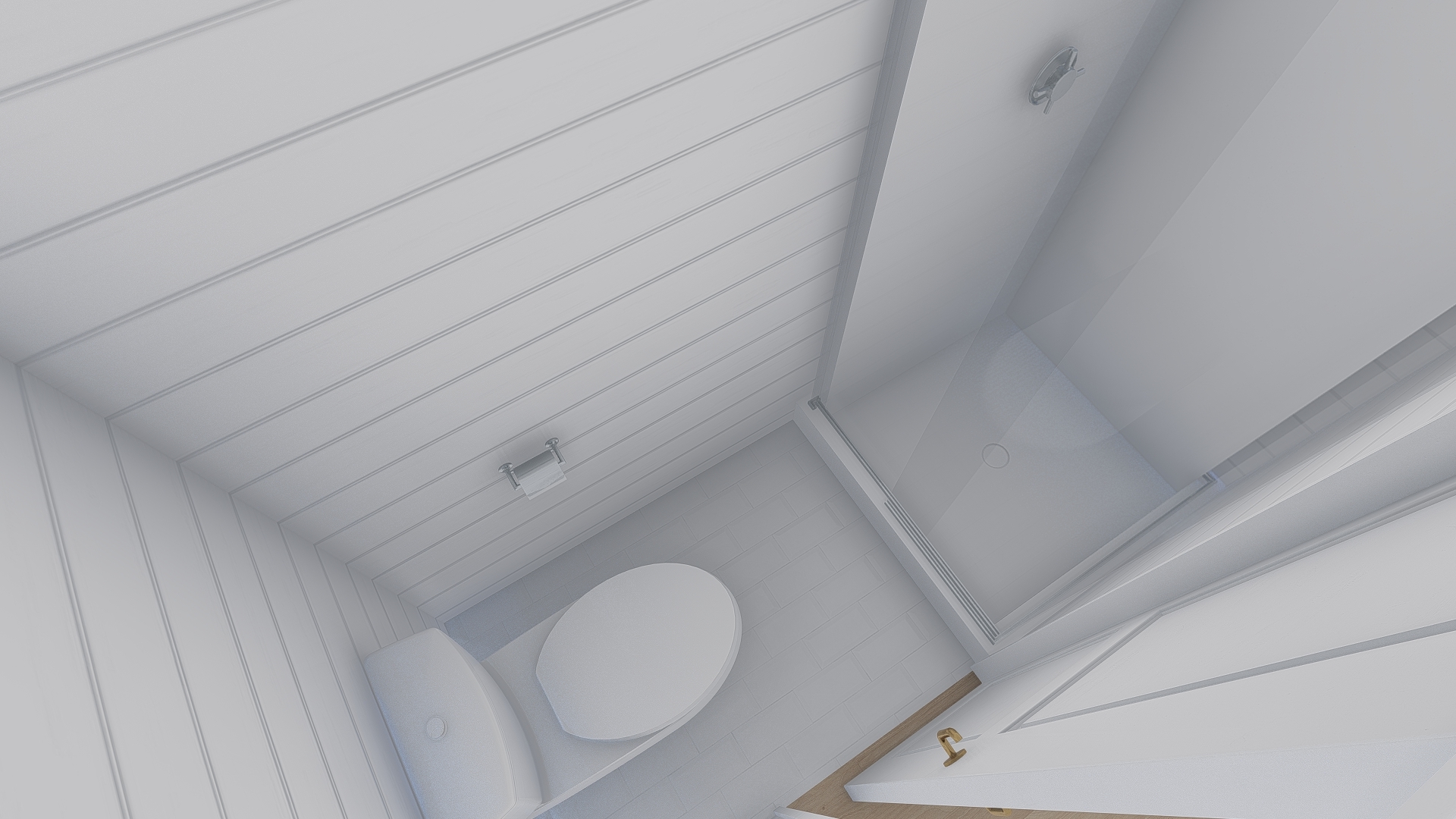

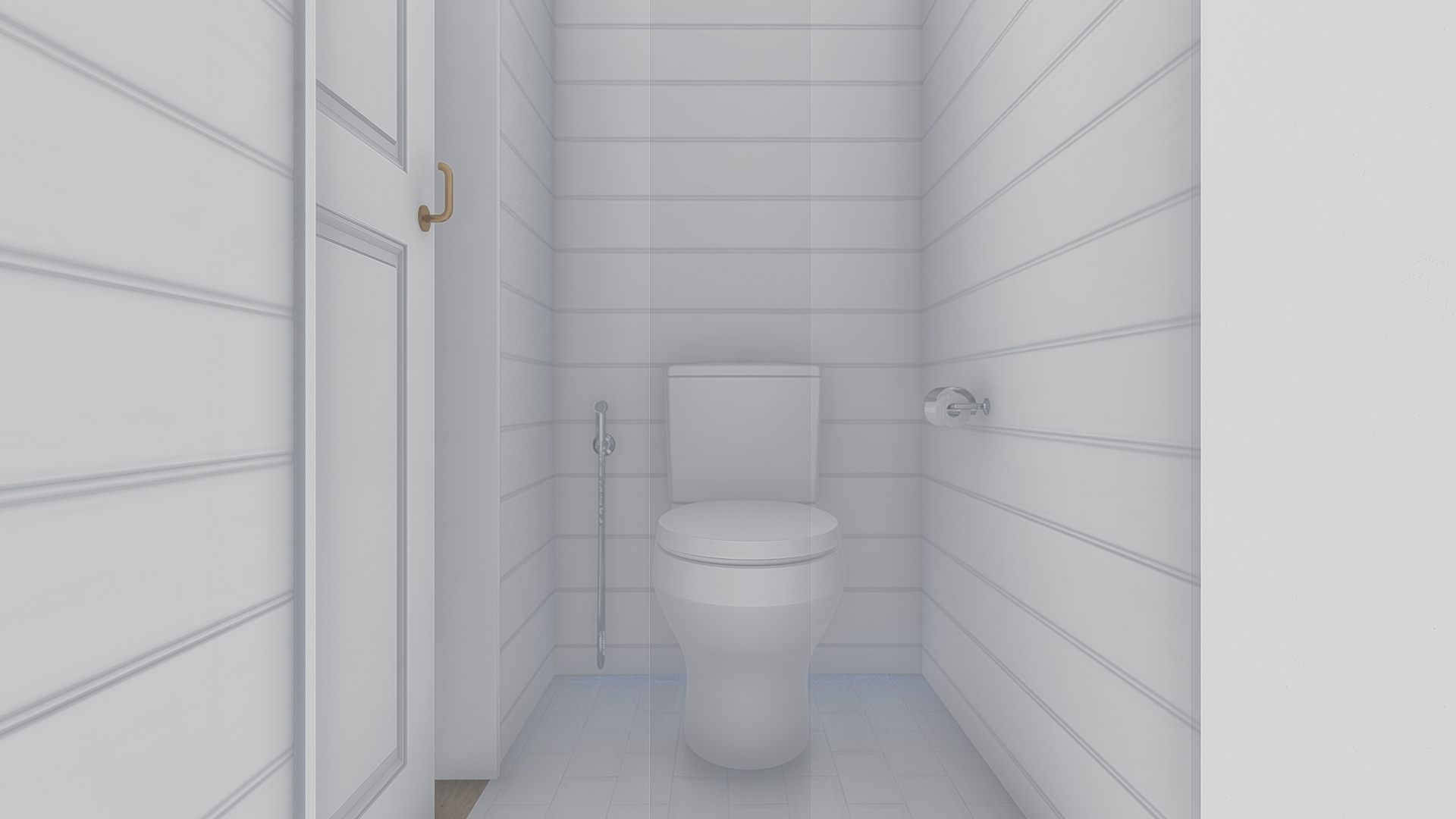

ADA BATHROOM

  • Qty 1 – ADA Shower Stall
  • Qty 2 – Standard Toilet 1.6 Gallons
  • Qty 2 – Vent Fan with Light
  • Qty 3 – Grab Bars (1 Shower, 2 Toilet)

MEP

  • Panel – Qty 2 – 125 amp 12 Slot Panel Breaker Box (Outdoor Exterior Mount)
  • HVAC – Qty 2 –  One-ton Ductless Mini-Split Air Conditioner and Heat (12,000 BTU)
  • Water in – Qty 1 –  .5 in RV hose spigot for water is installed on the rear. 1/2 PEX plumbing with an Antifreeze hose bib
  • Greywater – Qty 1 –  1.5 in PVC “stub-out” to be connected to the city sewer or RV hookup
  • Blackwater – Qty 1 – 3 in PVC “stub-out” to be connected to the city sewer or RV hookup.
  • Water heater – Qty 1 – 13 kW Self-Modulating Tankless Water heater 2.54 GPM installed under the vanity cabinets.
  • Data Port – Qty 2

EXTERIOR

  • Direct to Metal Paint
  • Primer Applied
Shower Upgrade Options

3 x 3 Wall Surround Shower (Standard) ($0.00), Title Stand-up Shower ($4,590.00), Tube Shower Includes 4 Integrated Shelves ($1,960.00)

Exterior Cabin Cladding

Painted Container – Choose Your Color (Standard) ($00.00), Exterir Canbin Cladding – Natural, Ebony, or Cedar ($12,959)

Rooftop Deck

Rooftop Deck Views ($0.00), 20 ft Rooftop Deck ($10,126.00), 40 ft Rooftop Deck ($14,816.00)

Interior Walls & Ceiling

Drywall-Orange Peal (Standard)($0.00), White Ship ($5688), Roughcut Shiplap ($6762), Gray Barnwood Shiplap ($8105)

Faux Ceiling Beams

No Faux Beams (Standard)($0.00), Qte 2 Faux Beams ($946)

Cargo Door Upgrade

No Cargo Door Upgrade (Standard) ($00.00), 15 Grille Double Door – Install Behind Cargo Doors ($2,831), Full Glass French Doors – Installed Behind Cargo Doors ($3,428), Sliding Glass Door – Install Behind Cargo Doors ($2,124)

Lighting Upgrades

Qty 4 Brushed Nickel Low Profile Lights (Standard) ($0.00)

ADA Compliance

No ADA Compliance (Standard)($0.00), ADA Compliance Upgrade ($6.050)
